    Pixel Control RGBW LED Beam Moving Head Light

    Ask Lasest Price
    Brand Name : Intuiit
    Model Number : XY-018
    Certification : CE&RoHS
    Payment Terms : T/T IN ADVANCE (30% deposit, 70% balance payment before delivery)
    Supply Ability : 10000Pcs/Month
    Delivery Time : 25-35days for mass order
    • Product Details
    • Company Profile

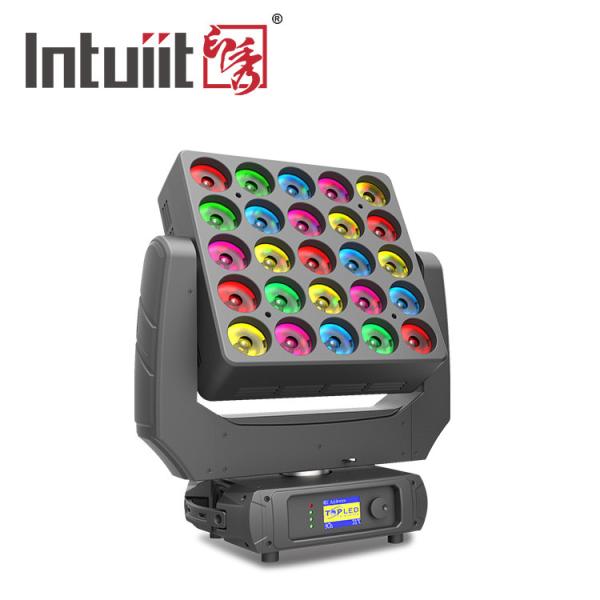

    Pixel Control RGBW LED Beam Moving Head Light

    Professional LED 5*5 Matrix beam effect moving head light RGBW Pixel control stage light


    XY-018 is professional Matrix 5x5 LED pixel moving head beam effect light,featuring 25Pcs*10W RGBW 4-in-1 LED, total 370W, beam angle 4.5°, advanced high efficiency low noise cooling and movement control systems, RGBW pixel control, pan 540° , tilt 270°, present rich color effects, linear dimming and selectable dimming curves system. DMX, RDM (Remote Device Management) support, 3Pin/5pin DMX,PowerCon in & Out connection,and a multi-voltage universal auto switching power supply (AC100-240V). Suitable for professional stage shows,as well as rental business.


    Technical Data

    Item No.XY-018
    Light Source25Pcs*10W RGBW 4-in-1 LED
    Max. Power370W
    Work VoltageAC100-240V,50/60Hz
    Beam angle4.5º
    Lumen5800lm
    Dimming16bit
    Control protocolDMX512
    DMX Channels9CH,16CH,117CH
    Pan/TiltPan540º,Tilt 270º
    IP GradeIP20
    Dimension517*276*604MM
    Net Weight18KG

    Light Distribution Data

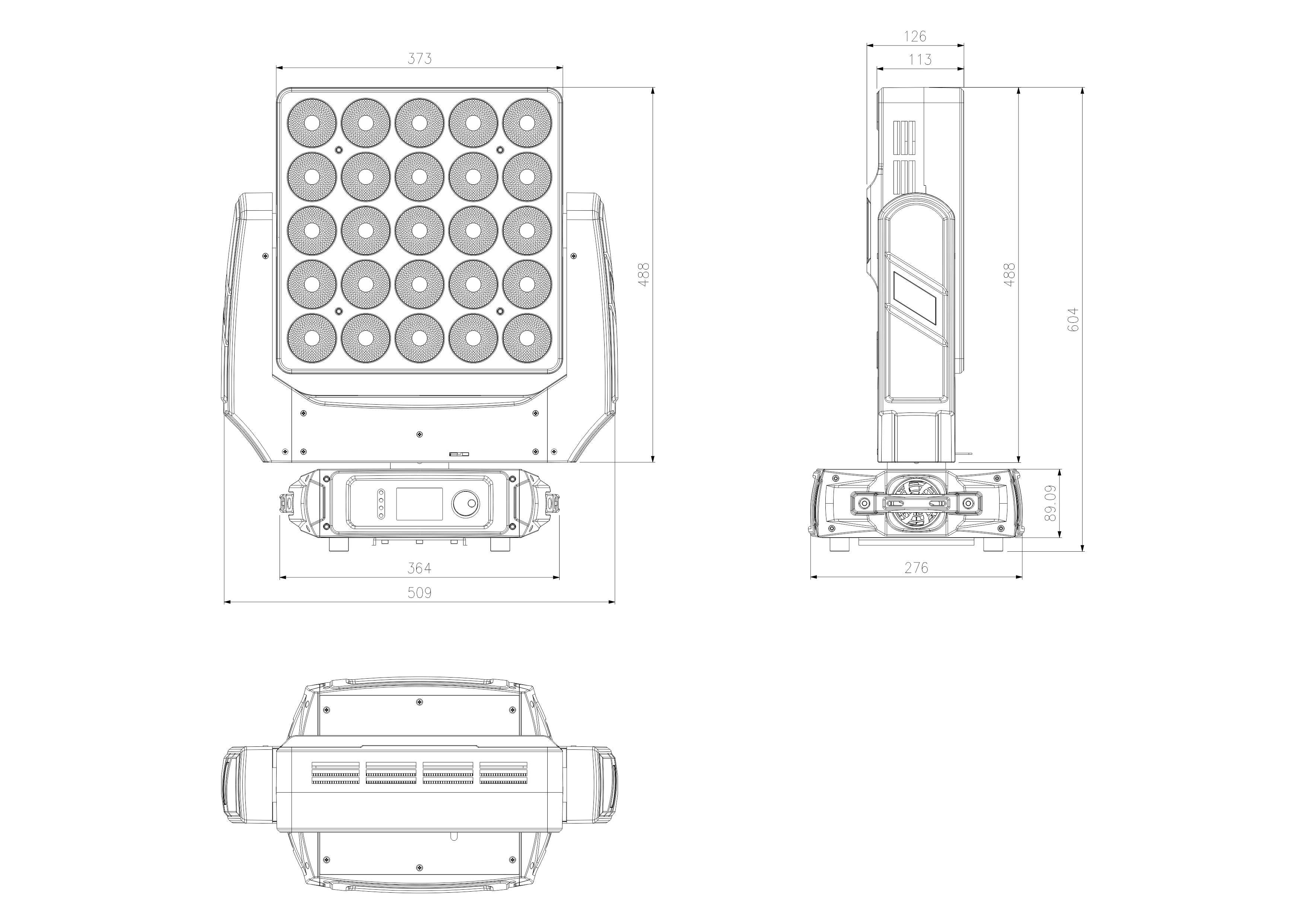

    Product's Dimension

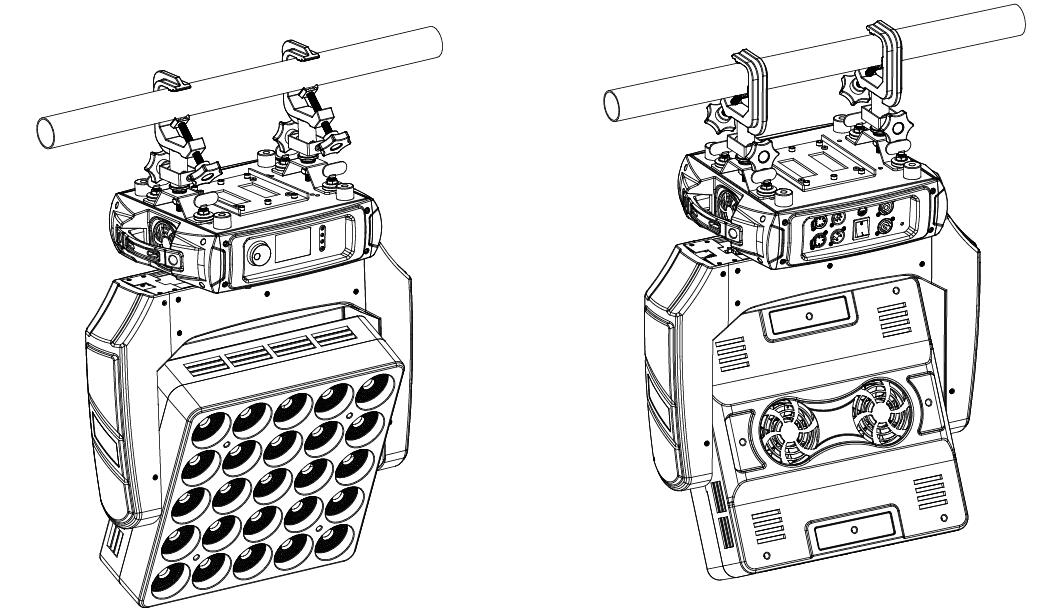

    Installation Diagram


    FAQ

    Q1. Can I have a sample order for led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable


    Q2. What about the lead time?
    A: Sample needs 5~15 days, mass production time needs 25~35days


    Q3. Do you have any MOQ limit for led light order?
    A: MOQ20 to 50, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?
    A: Firstly:let us know your requirements or application.
    Secondly:We quote according to your requirements or our suggestions.
    Thirdly:customer confirms the samples and places deposit for formal order.
    Fourthly:We arrange the production.

    Q6. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 1, 2 , 5 year warranty to our products.

    Q8: How to deal with the faulth?
    A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
    Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

    Q9: Do you work a project?

    A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
