    Waterproof Linear LED Wall Washer Light

    Ask Lasest Price
    Brand Name : Intuiit
    Model Number : IXQ18B
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

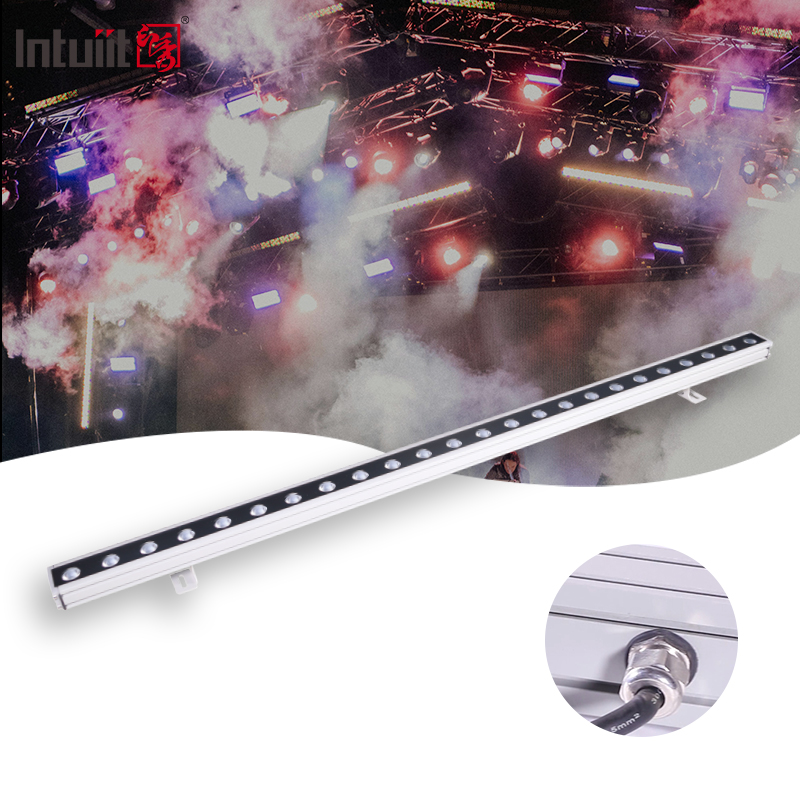

    Waterproof Linear LED Wall Washer Light

    LED architectural lighting dmx rgbw 1m 0.5m 0.3m led wall washer linear light for facade building


    IXQ18B is a good color mixing waterproof IP65 led wall washer linear light, 1800K-6500k,RGB, RGBW led optional, suitable for operation in all-weather conditions. It is small in size, light in weight, able to achieve seamless stitching. It supports DMX512 protocol and RDM function


    It has the length of 1m, 0.5m, 0.3m optional for facade building.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor architetural lighting projects to provide new lighting solutions.


    Specification:


    Item NumberIXQ18B01(1M)
    IXQ18B09(0.5M)
    IXQ18B10(0.3M)
    IXQ18B03(1M)
    IXQ18B11(0.5M)
    IXQ18B12(0.3M)
    IXQ18B05(1M)
    IXQ18B13(0.5M)
    IXQ18B14(0.3M)
    IXQ18B07(1M)
    IXQ18B15(0.5M)
    IXQ18B16(0.3M)
    IXQ18B17(1M)
    LED Qty24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M)16pcs(1M) / 8pcs(0.5M) / 4pcs(0.3M)16pcs(1M)
    Beam Angle20°/30°/40°/20*40°/60°Optional
    Spot Angle40°/50°/75°/45*75°/100°Optional
    Lumen3750lm / 1860lm / 815lm1395lm / 865lm /450lm1835lm / 1085lm / 550lm1652lm
    CRIRa≥70///
    Color Tempreture2700∽6000K OptionalRGBRGBW(W:3000 / 4000 / 6000K Optional)
    Product Measurement1000*52*80MM(1M) / 510*52*80MM(0.5M) / 300*52*80MM(0.3M)
    N.W.2.5kg(1M) / 1.6kg(0.5M) /1.2kg(0.3M)
    Input Voltage RangeDC24V
    Watts48W(1M) / 24W(0.5M) / 12W(0.3M)
    Power Factor>0.9
    Housing MaterialTensile Aluminum + die-cast aluminium
    ColorMatt black / Grey
    CoolingNatural convection cooling
    Control ProtocolON/OFFDMX512DMX512DMX512DMX512-RDM
    Segmented Control/4Section(1M)/2 Section(0.5M)/1Section(0.3M)4 Section(1M)
    Channel/4 / 6 / 7 / 16 CH
    Power /InstallationIndependent
    Conection3pin rubber cable:input/outputblack rubber cable 5 Pin In & Out
    Power Linking3cs(1m) / 6pcs(0.5m) /12pcs(0.3m)
    DMX Linking/32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M)
    CertificationCE,RoHS
    IP GradeIP65

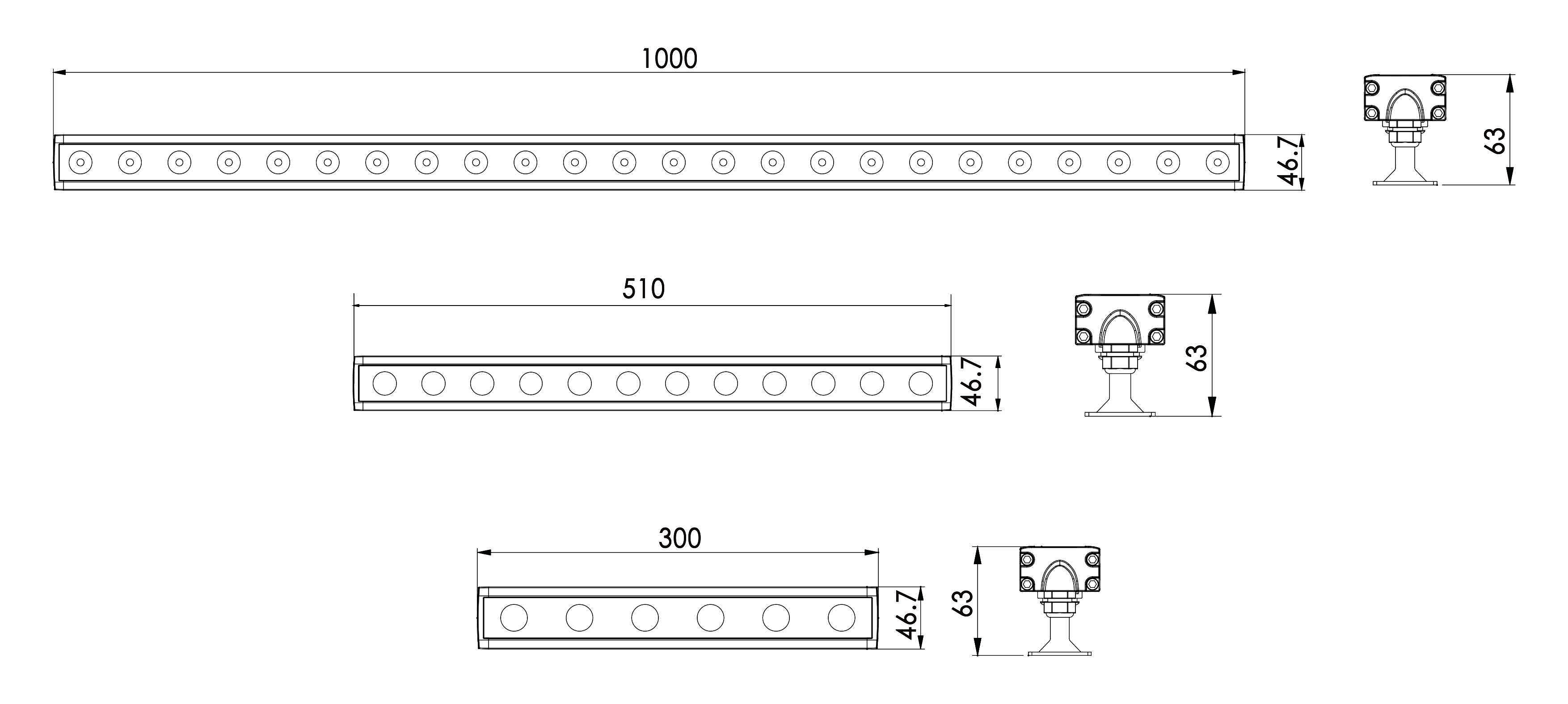

    Product size

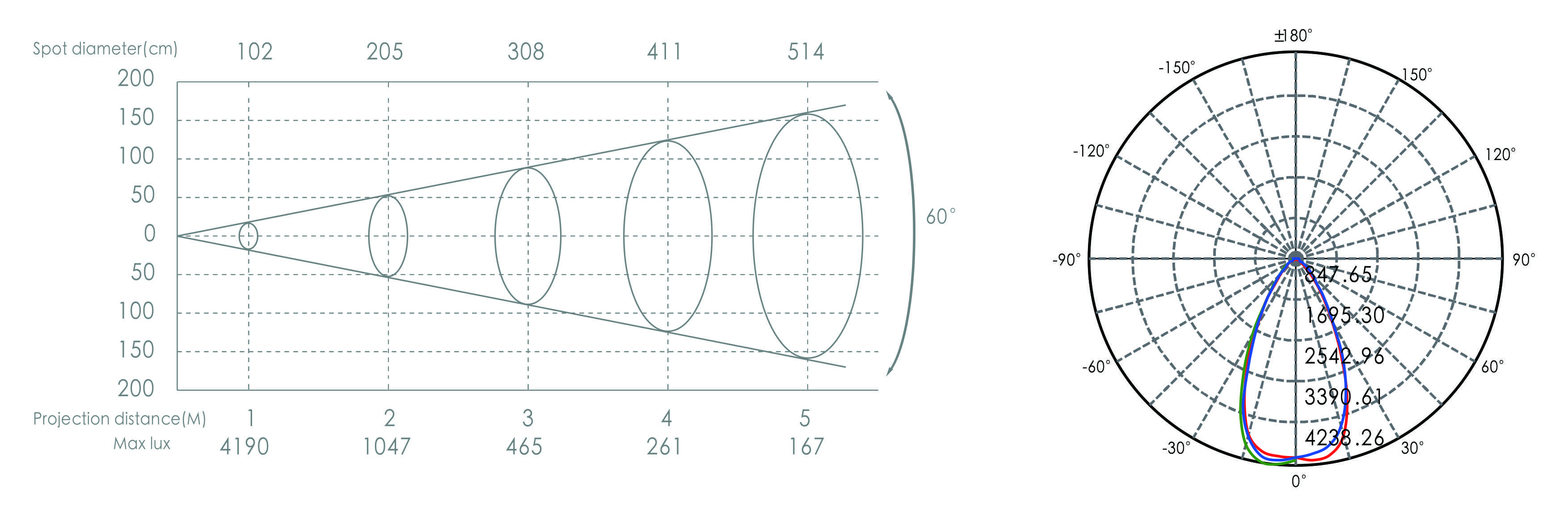

    Product opic

    Product installation


    IXQ17C - 07()

    Waterproof Linear LED Wall Washer Light

    Waterproof Linear LED Wall Washer LightWaterproof Linear LED Wall Washer LightWaterproof Linear LED Wall Washer LightWaterproof Linear LED Wall Washer LightWaterproof Linear LED Wall Washer LightWaterproof Linear LED Wall Washer Light

    Q1. Can I have a sample order for led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 5~15 days, mass production time needs 25~35days

    Q3. Do you have any MOQ limit for led light order?
    A: MOQ20 to 50, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?
    A: Firstly:let us know your requirements or application.
    Secondly:We quote according to your requirements or our suggestions.
    Thirdly:customer confirms the samples and places deposit for formal order.

    Fourthly:We arrange the production.

    Q6. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 1, 2 , 5 year warranty to our products.

    Q8: How to deal with the fault?
    A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
    Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

    Q9: Do you work a project?

    A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
