    36W DJ Light Bar LED Linear Bars Wall Washer RGBW Dynamic Outdoor LED Wall Washer Lights

    Ask Lasest Price
    Brand Name : Intuiit
    Model Number : IXQ17C
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs per months
    Delivery Time : 25-35days
    • Product Details
    • Company Profile

    36W DJ Light Bar LED Linear Bars Wall Washer RGBW Dynamic Outdoor LED Wall Washer Lights

    Key details about the LED architectural lighting products :DC24V 1M RGBW 36W DMX LED Wall Washer Light:

      • Voltage: 24VDC
      • Length: 1 meter
      • LED Type: RGBW (4-in-1)
      • Power: 36 watts
      • Control Protocol: DMX
      • Application: Outdoor facade lighting, building illumination
      • Waterproof IP65 Outdoor LED Wall Washer 36W RGBW 4-in-1:
      • Power: 36 watts
      • LED Type: RGBW (4-in-1)
      • Ingress Protection: IP65 (Waterproof)
      • Application: Outdoor facade lighting, landscape lighting
      • Professional Stage Lighting IP65 Outdoor Waterproof LED Bar Wash RGBW 4-in-1 16pcs 36W:
      • Power: 36 watts
      • LED Quantity: 16 pieces
      • LED Type: RGBW (4-in-1)
      • Ingress Protection: IP65 (Waterproof)
      • Application: Outdoor stage/event lighting, architectural lighting
      • IXQ17C Waterproof IP65 LED Wall Washer Light:
      • Ingress Protection: IP65 (Waterproof)
      • Control Protocol: DMX512, RDM
      • Features: Compact size, lightweight, seamless stitching
      • Application: Hotels, shopping malls, buildings, landscapes, municipal projects

      All these products are designed for outdoor, architectural, and landscape lighting applications, providing various length options, color mixing capabilities, and weatherproof IP65 ratings. The DMX and RDM control protocols allow for advanced lighting programming and control.


      1. Specification

      Item NumberIXQ17C31(1M)
      IXQ17C39(0.5M)
      IXQ17C40(0.3M)
      IXQ17C16(1M)
      IXQ17C34(0.5M)
      IXQ17C33(0.3M)
      IXQ17C17(1M)
      IXQ17C35(0.5M)
      IXQ17C38(0.3M)
      IXQ17C20(1M)
      IXQ17C36(0.5M)
      IXQ17C29(0.3M)
      IXQ17C47(1M)
      LED Qty24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M)16pcs(1M)
      Beam Angle20°/30°/40°/20*40°Optional
      Spot Angle40°/50°/75°/45*75°Optional
      Lumen2260lm / 1116lm / 710lm1050lm / 650lm / 318lm1240lm / 610lm / 430lm1240lm
      CRIRa≥70///
      Color Tempreture2700∽6000K OptionalRGBRGBW(W:3000 / 4000 / 6000K Optional)
      Product Measurement1000*47*63MM(1M) / 510*47*63MM(0.5M) / 300*47*63MM(0.3M)
      N.W.1.9kg(1M) / 1.2kg(0.5M) / 0.8kg(0.3M)
      Input Voltage RangeDC24V
      Watts36W(1M) / 18W(0.5M) / 9W(0.3M)
      Power Factor>0.9
      Housing MaterialTensile Aluminum + die-cast aluminium
      ColorMatt black / Grey
      CoolingNatural convection cooling
      Control ProtocolON/OFFDMX512DMX512DMX512DMX512-RDM
      Segmented Control/4Section(1M)/2 Section(0.5M)/1Section(0.3M)4 Section(1M)
      Channel/4 / 6 / 7 / 16 CH
      Power /InstallationIndependent
      Conection2pin rubber cable:input/outputblack rubber cable 5 Pin In & Out
      Power Linking5pcs(1m) / 8pcs(0.5m) / 12pcs(0.3m)
      DMX Linking/32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M)
      CertificationCE,RoHS
      IP GradeIP65

      36W DJ Light Bar LED Linear Bars Wall Washer RGBW Dynamic Outdoor LED Wall Washer Lights

      36W DJ Light Bar LED Linear Bars Wall Washer RGBW Dynamic Outdoor LED Wall Washer Lights

      36W DJ Light Bar LED Linear Bars Wall Washer RGBW Dynamic Outdoor LED Wall Washer Lights

      Product optic

      Product size

      Product installation:

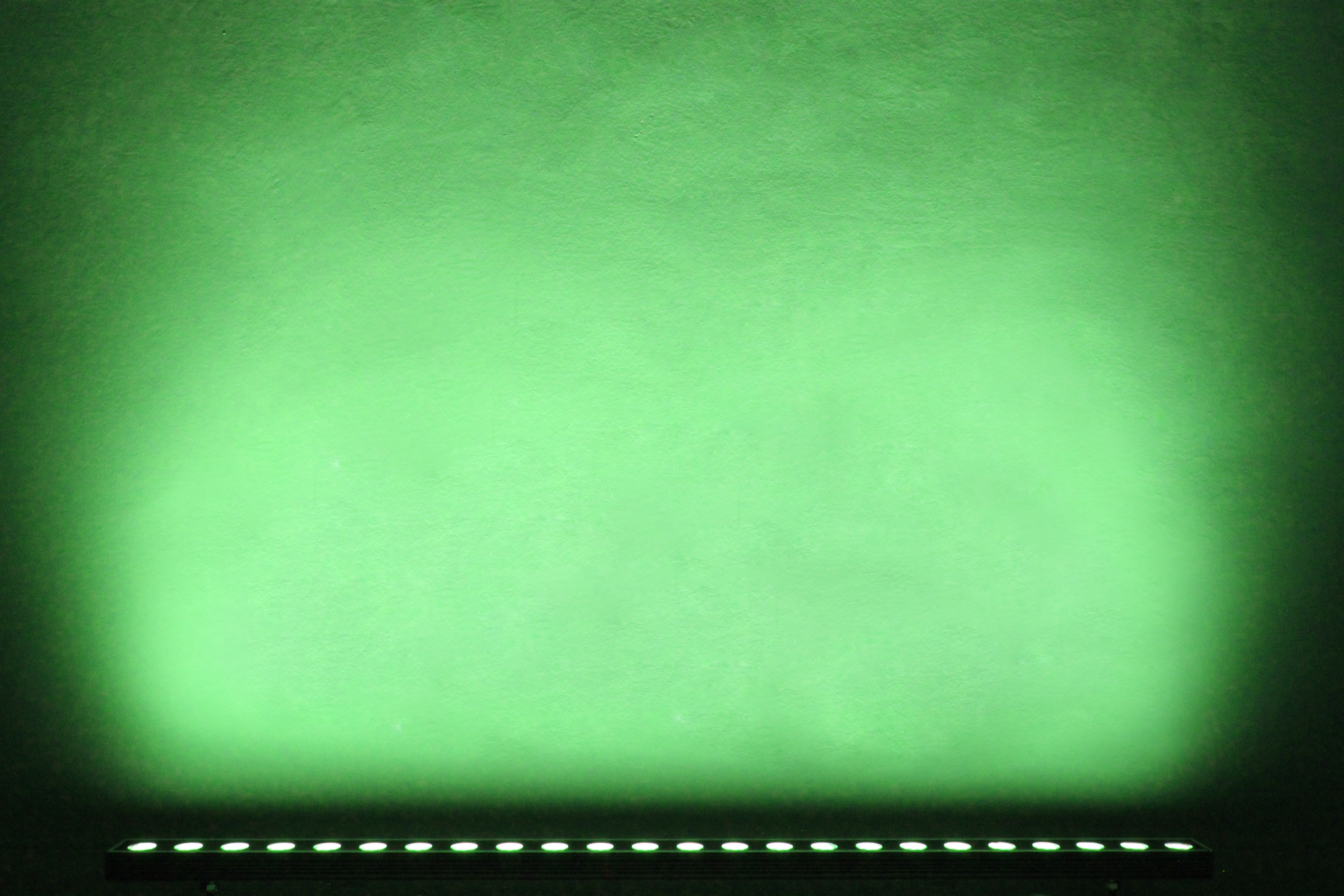

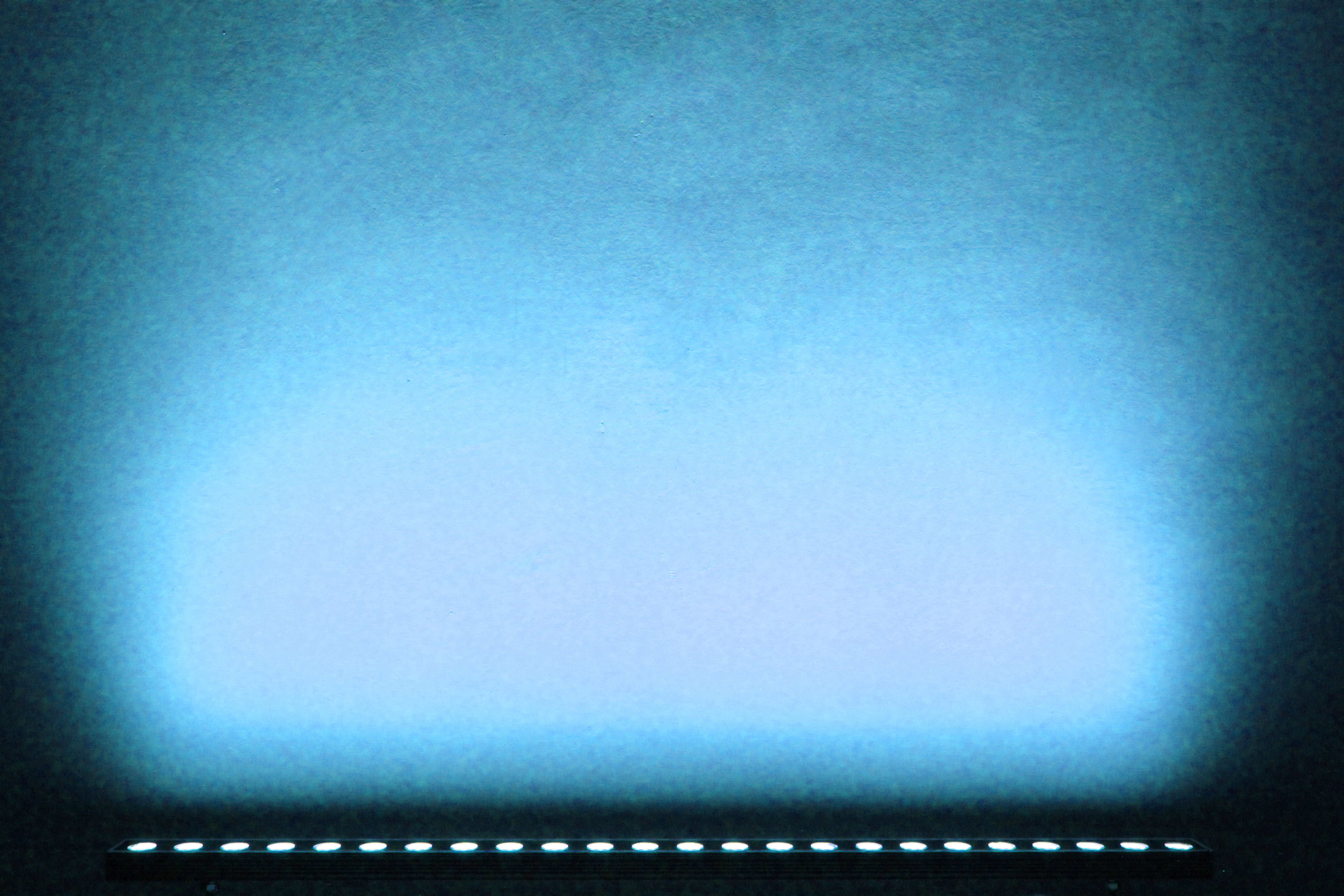

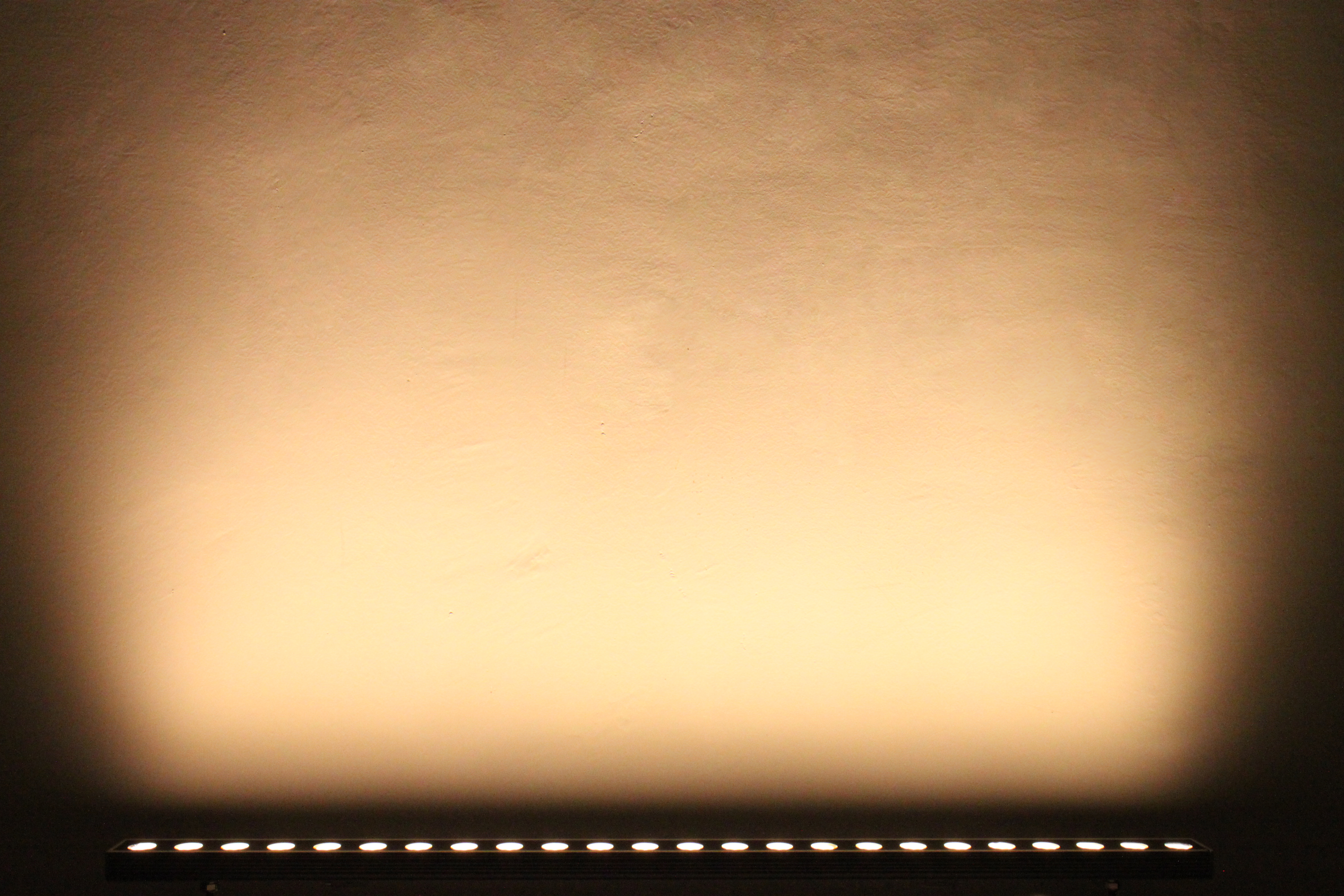

      2. Effect show

      Aluminum waterproof dmx exterior color change dc24V rgbw 4 in 1 led wall washer light


      3. FAQ


      Q1. Can I have a sample order for led light?
      A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

      Q2. What about the lead time?
      A: Sample needs 5~15 days, mass production time needs 25~35days

      Q3. Do you have any MOQ limit for led light order?
      A: MOQ20 to 50, 1pc for sample checking is available

      Q4. How do you ship the goods and how long does it take to arrive?
      A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

      Q5. How to proceed an order for led light?
      A: Firstly:let us know your requirements or application.
      Secondly:We quote according to your requirements or our suggestions.
      Thirdly:customer confirms the samples and places deposit for formal order.

      Fourthly:We arrange the production.

      Q6. Is it OK to print my logo on led light product?
      A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

      Q7: Do you offer guarantee for the products?
      A: Yes, we offer 1, 2 , 5 year warranty to our products.

      Q8: How to deal with the fault?
      A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
      Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

      Q9: Do you work a project?

      A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
